Build farm administration

Ouroboros builds and tests code on your own machines. Each machine runs the ouroboros-runner agent. The agent makes an outbound connection to your deployment and takes the builds Ouroboros sends it, so your machines need no open inbound ports. Together the runners are the build farm.

This page covers setting the farm up and keeping it healthy: pools, enrollment tokens, enrolling a machine, reading a runner's health, and draining or removing runners. It also covers how runners authenticate. The agent's commands are described in ouroboros-runner enroll and run.

Everyone in the workspace can read Build Farm (/build-farm). Only an Owner or a Maintainer can create pools, enroll, drain or remove runners, or mint and revoke enrollment tokens. Anyone else sees the switches in their real positions, switched off, and a runner's menu holds View details alone.

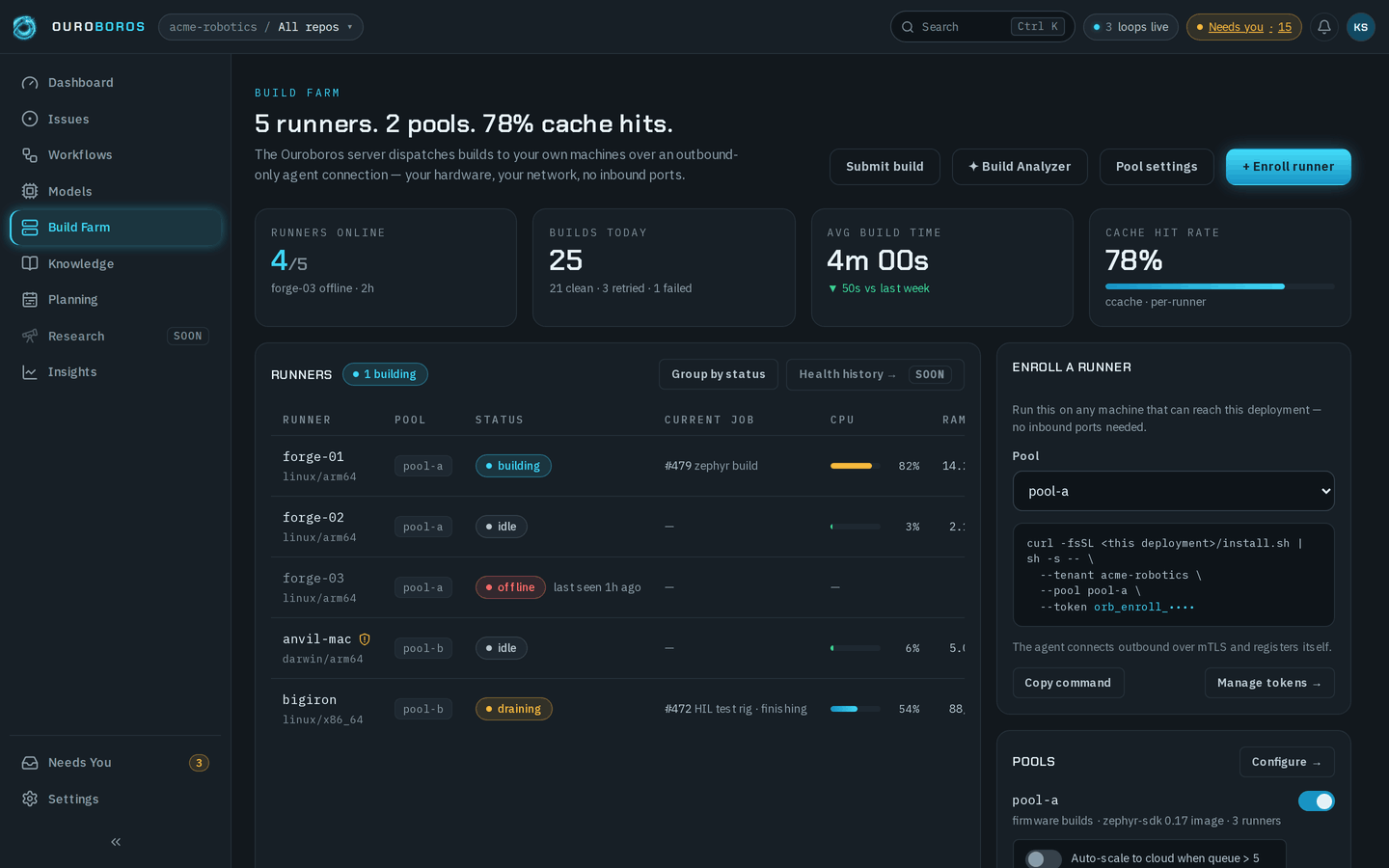

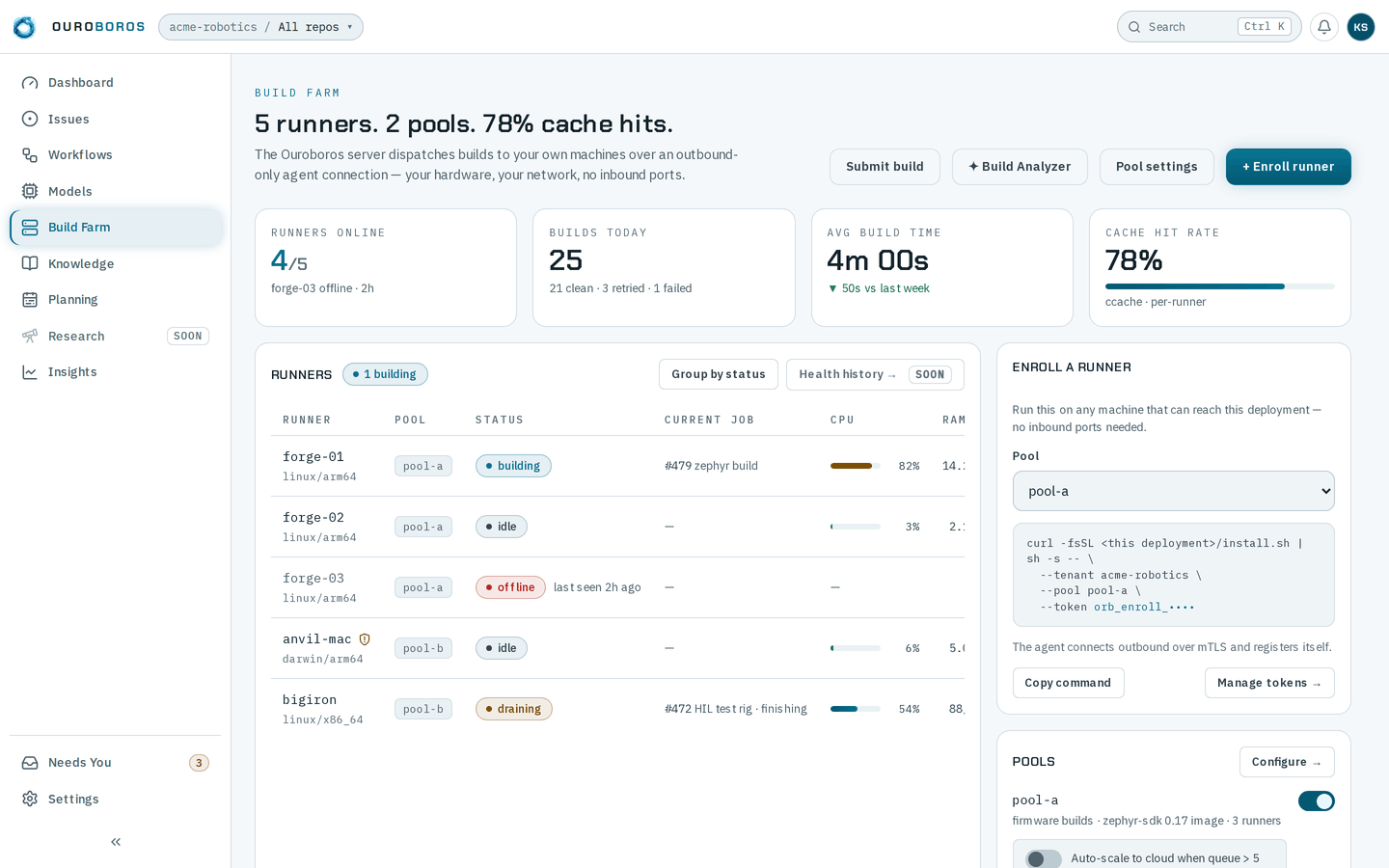

The build farm: the fleet's figures, the live build, the runners table, the pools and the enroll card.

The page shows:

• Runners online, Builds today, Avg build time and Cache hit rate — the fleet in four figures. Under Runners online, the runners that are offline and for how long.
• Runners — the fleet table, described under Runner health.
• Enroll a runner — the command that adds a machine.
• Pools — each pool, its switch, and Configure →.

Pools

A runner always belongs to one pool, and the pool says how its builds run. Create a pool before you enroll the first runner. Choose Pool settings, or Configure → on the Pools card, to open Configure pools. Then choose + New pool:

Field	What it means
Name	What --pool says on an enroll command and what a build selects. Lower-case letters, digits and dashes, up to 64.
Description	One line on the card, such as firmware builds. Up to 200 characters.
Executor	container — builds run in a pinned image; or shell — builds run on the machine itself.
Image	For a container pool, the image every build runs in — registry, path and tag.
Env allow-list	One variable name per line. A build's environment holds only these; the runner drops every other variable.
Concurrency	How many builds one runner of this pool may run at once — per runner, not per pool. From 1 to 64.

Choose Create pool. Changing a pool's executor affects only builds submitted afterwards.

• The switch on a pool's row turns it off: it takes no new builds and keeps its runners and history.
• Delete pool works only on an empty pool. A pool that runners or builds still name can only be switched off.
• Auto-scale to cloud is shown on each pool, switched off — arrives with cloud runners (v2). Builds stay on your machines.

A hosted runner pool

This version of Ouroboros has no hosted runners: every runner is a machine you enroll. OURO_HOSTED_RUNNER_POOL is reserved for one. Today it changes only what the Smart Defaults card on Get Started offers a new workspace. Leave it false.

Enrolling a runner

1. On the Enroll a runner card, choose the Pool.
2. Choose Copy command. Ouroboros mints a new enrollment token and puts the whole command, with the token, on your clipboard: Copied — treat this as a secret.
3. On the machine, paste and run it. It downloads the agent from your deployment, enrolls it into the pool and connects.

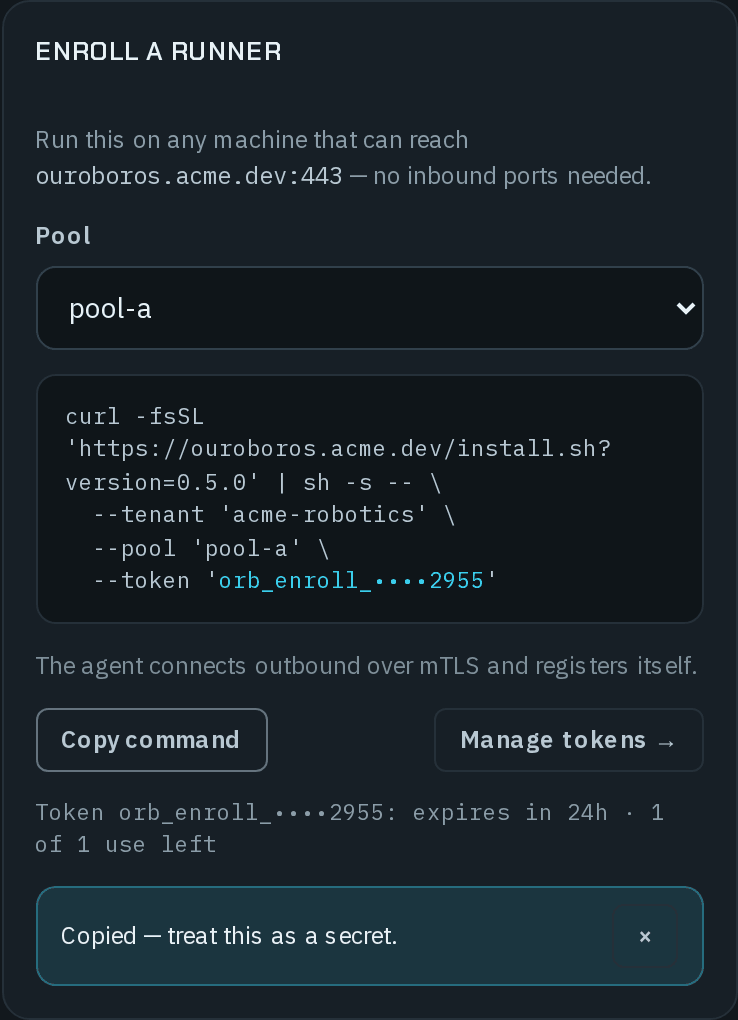

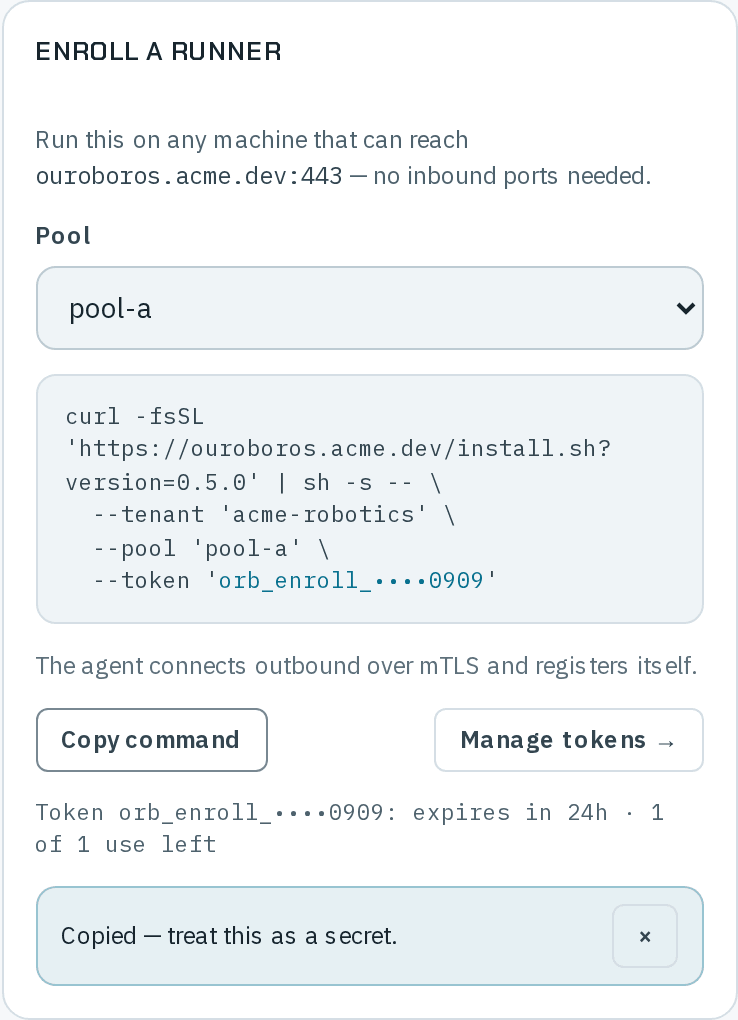

Minting a token: Copy command puts the whole enroll command, with a fresh single-use token, on your clipboard.

The command looks like this, with the token masked on the card:

curl -fsSL 'https://ouroboros.example.com/install.sh?version=0.5.0' | sh -s -- \
  --tenant 'acme-robotics' \
  --pool 'pool-a' \
  --token 'orb_enroll_…'

The new runner's row appears in the table within a few seconds of the agent connecting.

The card needs two settings from your deployment administrator before it can mint anything:

• OURO_FARM_PUBLIC_URL — the https:// address runner machines reach your deployment at.
• OURO_FARM_RELEASES_DIR — where the runner releases the installer serves are kept.

Without them, minting is refused: This deployment does not know the https address runner machines reach it at, or serves no runner release, so a command would install nothing. Nothing was minted.

The enroll command is a secret

Until it expires or is used up, the token in the command can add a machine to your farm. Paste it only on the machine you are enrolling. Don't put it in a ticket, a chat or a script that is checked in. If it may have leaked, revoke it under Farm tokens.

If your browser blocks the copy, nothing is left live: Your browser blocked the copy, so the token that was just minted has been revoked. Allow clipboard access for the page and copy again.

Enrollment tokens

Each Copy command mints a token that enrolls one machine and expires after 24 hours. Every token is listed on Settings › Farm tokens (/settings/farm-tokens), which only Owners and Maintainers can read.

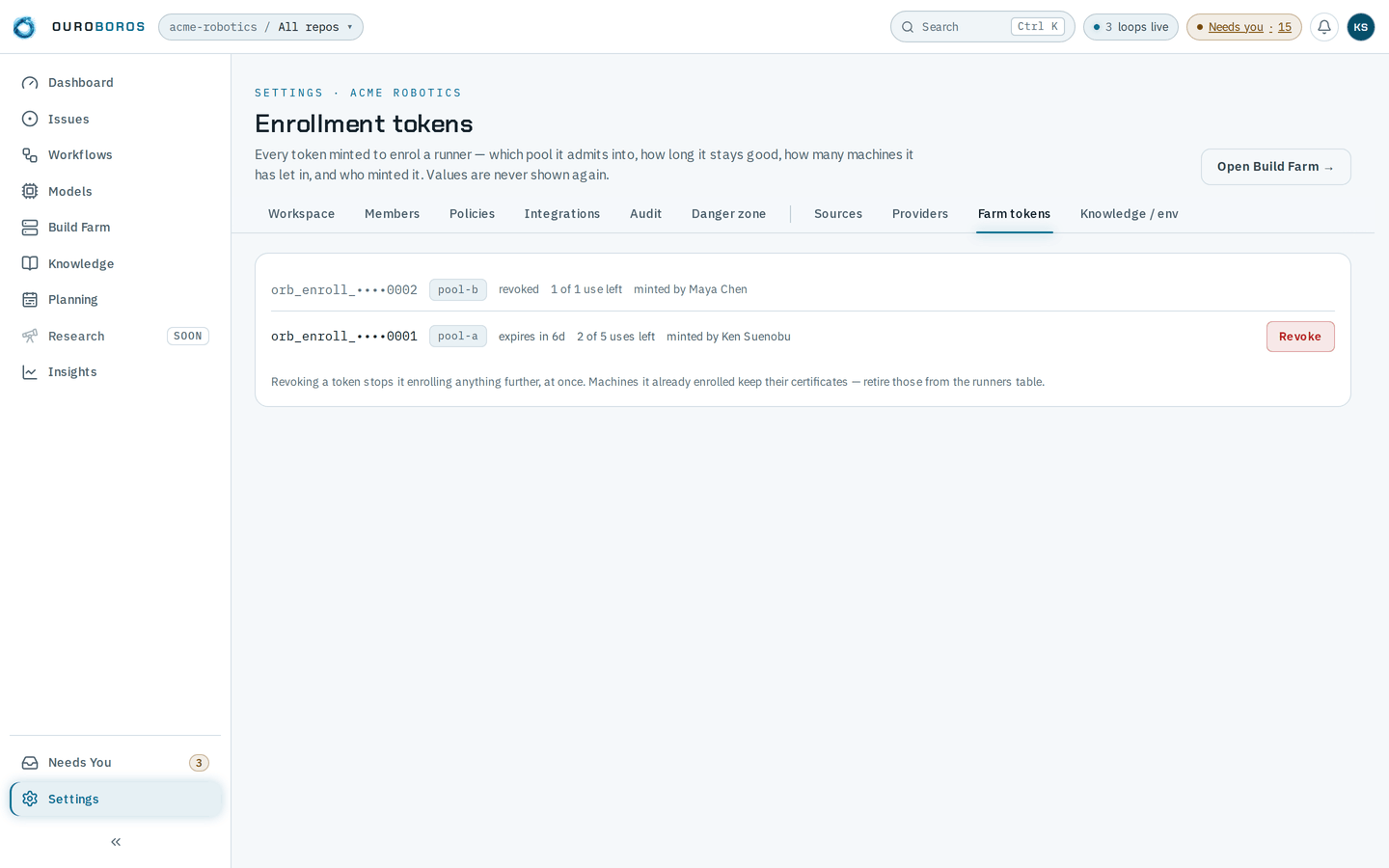

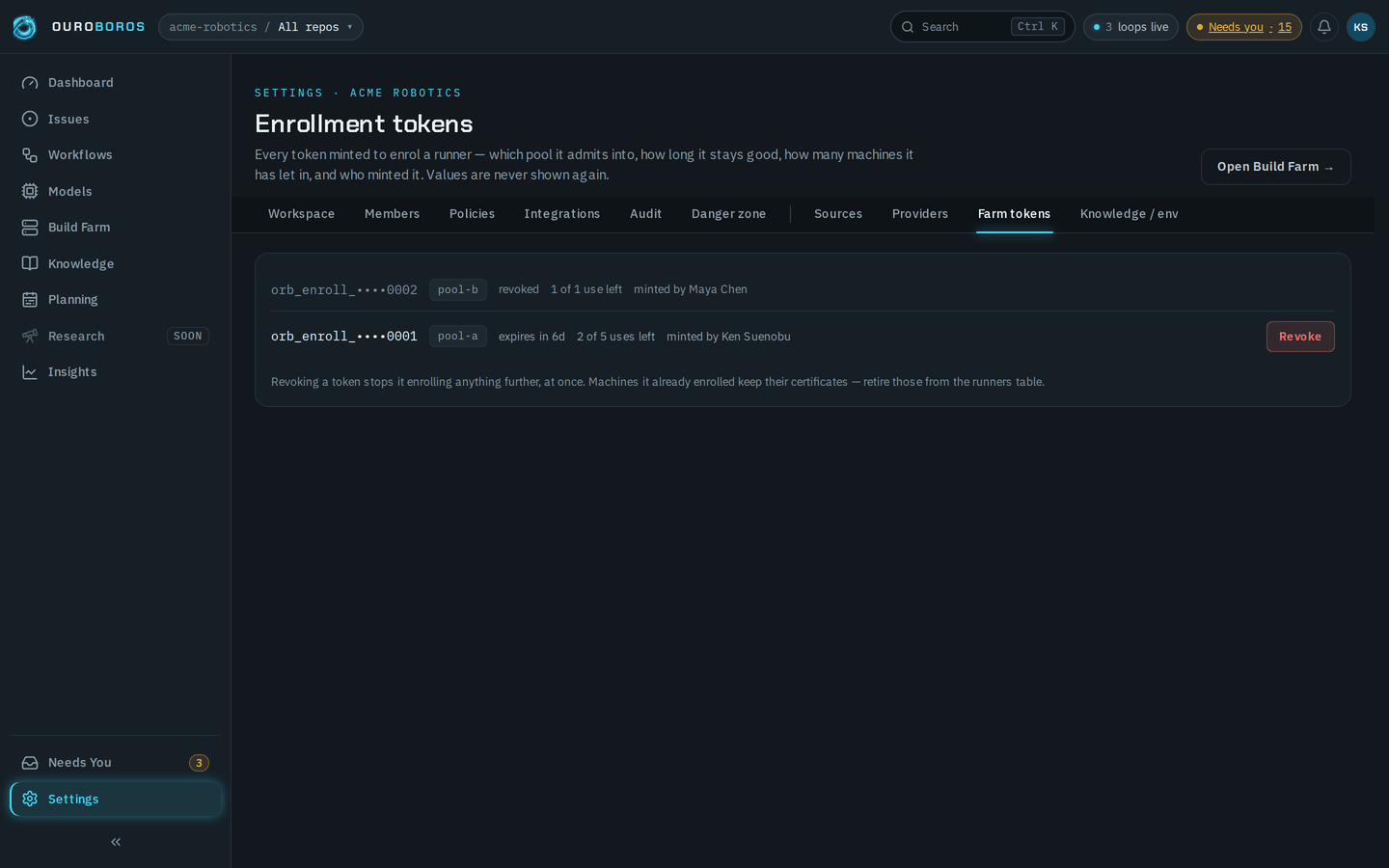

Farm tokens: every enrollment token, its pool, window, uses and who minted it.

Each row shows the token's last characters, its pool, how long it stays good — or revoked — how many of its uses are left, and who minted it. The token's value is never shown again.

Revoke stops a token enrolling anything further, at once. Machines it already enrolled keep their certificates — retire those from the runners table.

Runner health

The Runners table lists the fleet:

Column	What it shows
Runner	The machine's name and architecture, such as linux/arm64.
Pool	The pool it belongs to.
Status	building, idle, draining, offline or removed. An offline row says when the machine was last seen: last seen 2h ago.
Current job	The build it is running, if any.
CPU, RAM	Its last reported load.
Queue	Builds waiting for it, such as q:2.
Uptime	How long the agent has run.

A runner sends a heartbeat every 10 seconds. If none arrives for about half a minute, its status turns to offline. It turns back as soon as the agent reconnects. When no runner is online, the page warns that Nothing can build until a runner reconnects: submitted builds wait in the queue.

To see everything about one runner, open its ⋯ menu and choose View details:

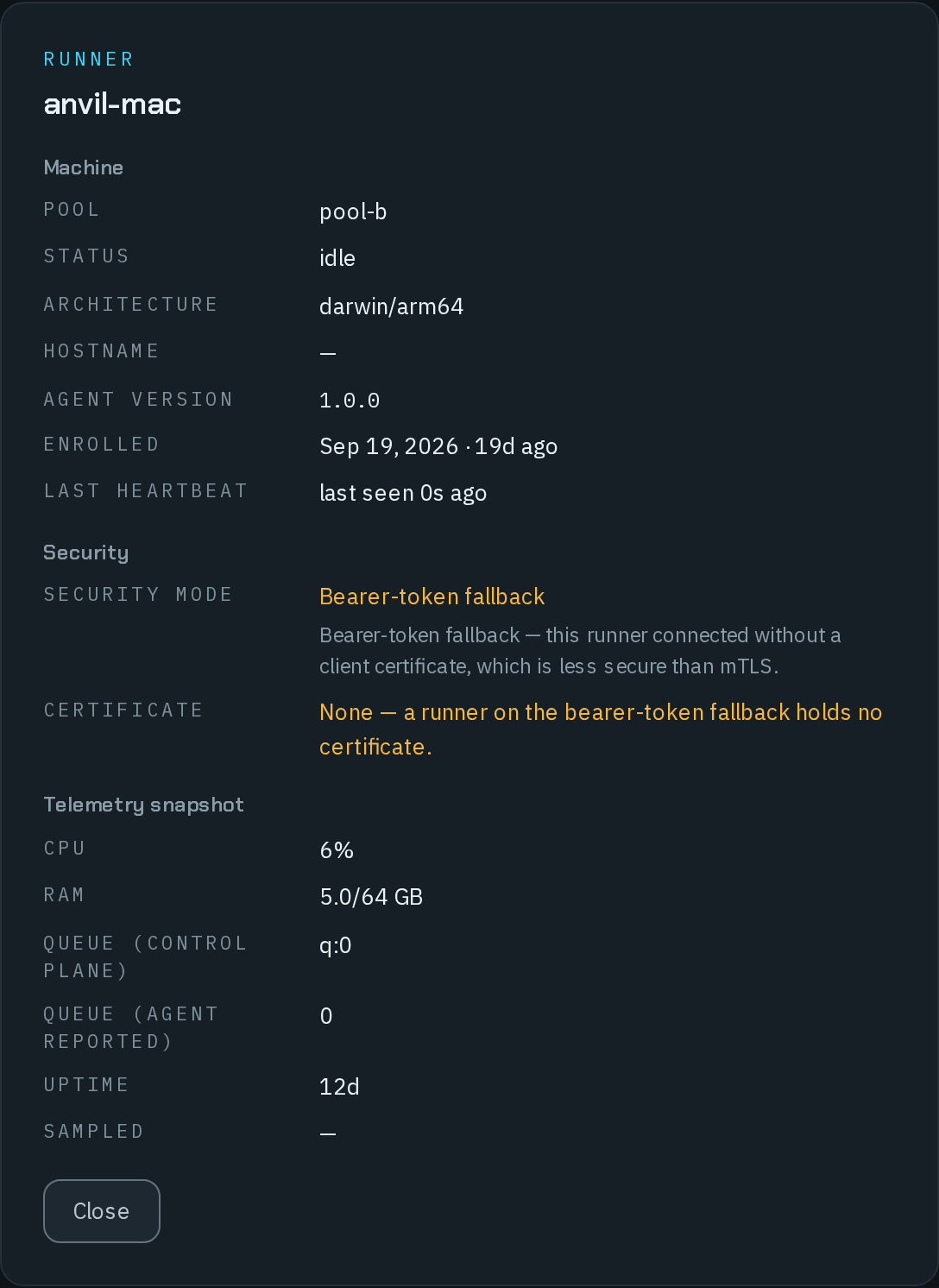

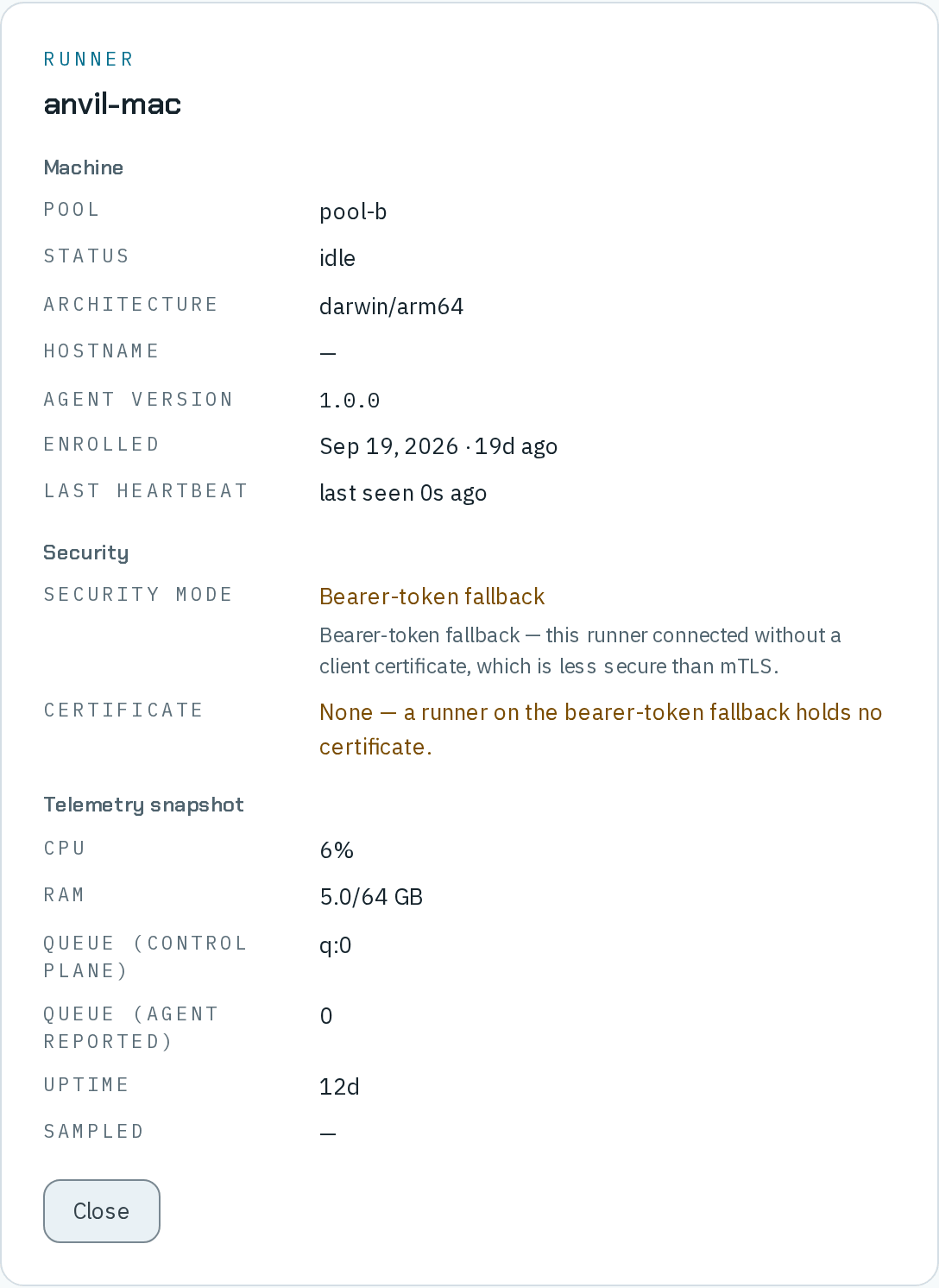

A runner's details: the machine, how it authenticates, and its last telemetry.

• Machine — pool, status, architecture, host name, agent version, when it was enrolled and its last heartbeat.
• Security — how it authenticates (see How runners authenticate) and its certificate's serial and validity.
• Telemetry snapshot — its last CPU, RAM, queues and uptime. An offline runner shows no snapshot rather than an old one.

Draining and removing a runner

Open the runner's ⋯ menu:

• Drain — the runner finishes the build it is running and accepts nothing new until you return it to service. The build is not interrupted, and there is no deadline. The row reads drain requested until the runner's next heartbeat, then draining. Drain a machine before maintenance.
• Undrain — the runner accepts new builds again.
• Remove — takes the runner out of the fleet for good. It is offered only for a runner that is offline or draining: removing a connected machine would orphan what it is building. When you confirm:
  • it leaves the table and every count on the page;
  • its certificate is revoked, so the machine cannot reconnect — bringing it back means enrolling it again;
  • the builds it ran keep their history and their logs;
  • the removal is recorded in the audit trail, with your name.

To retire a machine: Drain it, wait for its build to finish, stop the agent, then Remove it.

How runners authenticate

When a runner enrolls, your workspace's own certificate authority issues it a client certificate, valid for 90 days; the runner renews it on its own once 30 days remain. Every connection after that is mTLS: the runner proves who it is with the certificate, and it checks the deployment's certificate in return. This is the normal mode, and the runner's details read mTLS — client certificate.

Runners connect to the farm gateway, the address in OURO_FARM_PUBLIC_URL. For mTLS to work, client certificates must reach the REST service:

• TLS ends at the REST service — nothing to configure.
• A reverse proxy in front ends TLS — the proxy must pass each client certificate on in a header, and OURO_FARM_CLIENT_CERT_HEADER names it. Set it only when nothing but your proxy can reach the REST service. See The farm gateway.

The bearer-token fallback

Some corporate proxies strip client certificates and cannot be changed. For those, a runner can enroll with --bearer-fallback: instead of a certificate, it authenticates with a long random secret sent in each request.

This is less secure than mTLS: anyone who copies the secret from the machine can impersonate the runner. Ouroboros therefore shows it plainly: the runner's row carries a shield mark, and its details read Bearer-token fallback with this runner connected without a client certificate, which is less secure than mTLS.

The fallback is off in every workspace, and a runner that asks for it is refused. There is no screen to turn it on. If you must, the deployment administrator switches it on for one workspace in the database:

insert into ouroboros.workspace_settings (organization_id, runner_bearer_fallback)
select id, true from ouroboros.organization where slug = 'acme-robotics'
on conflict (organization_id) do update set runner_bearer_fallback = true;

Prefer fixing the proxy so client certificates reach the REST service. The setting covers every fallback runner in the workspace, not just enrollment: switching it off again (set runner_bearer_fallback = false) cuts every fallback runner off at its next connection. Move those machines to a certificate — Remove them and enroll them again without --bearer-fallback — before you switch it off.

What can go wrong

• Copy command is switched off with Create a pool first. A token always names a pool. Create one under Pool settings.
• Minting is refused because the deployment does not know its https address. Set OURO_FARM_PUBLIC_URL and OURO_FARM_RELEASES_DIR on the REST service.
• The install fails on the machine. The machine cannot reach OURO_FARM_PUBLIC_URL, or the token expired or was used up. Copy a fresh command.
• A runner is refused because it asked for the bearer-token fallback. The workspace does not permit it. Enroll with a client certificate, or see The bearer-token fallback.
• A runner is refused as too old. Its agent is older than OURO_FARM_MIN_AGENT_VERSION. Install a newer agent on the machine.
• A runner shows offline. The agent stopped or lost its connection. Check the agent on the machine; it reconnects on its own once it can reach the deployment.
• Remove is not offered. The runner is connected and not draining. Drain it first.
• A pool cannot be deleted. Runners or builds still name it. Switch it off instead.
• Builds wait in the queue. No runner in the build's pool is online, or every one is busy or draining.
