Build Analyzer

The Build Analyzer, at /analyzer, reads every build, test run and loop transcript in a repository's history and looks for patterns: when builds got slower or faster and why, which stages waste time, which failures keep coming back. It turns what it finds into suggestions — changes to how builds run, changes to your workflows, and tickets — each with a predicted impact, a confidence, and the evidence behind it.

Nothing the analyzer suggests changes anything by itself. You judge each suggestion, and you decide whether to apply it, draft it, or dismiss it. After you apply one, the analyzer measures whether it delivered.

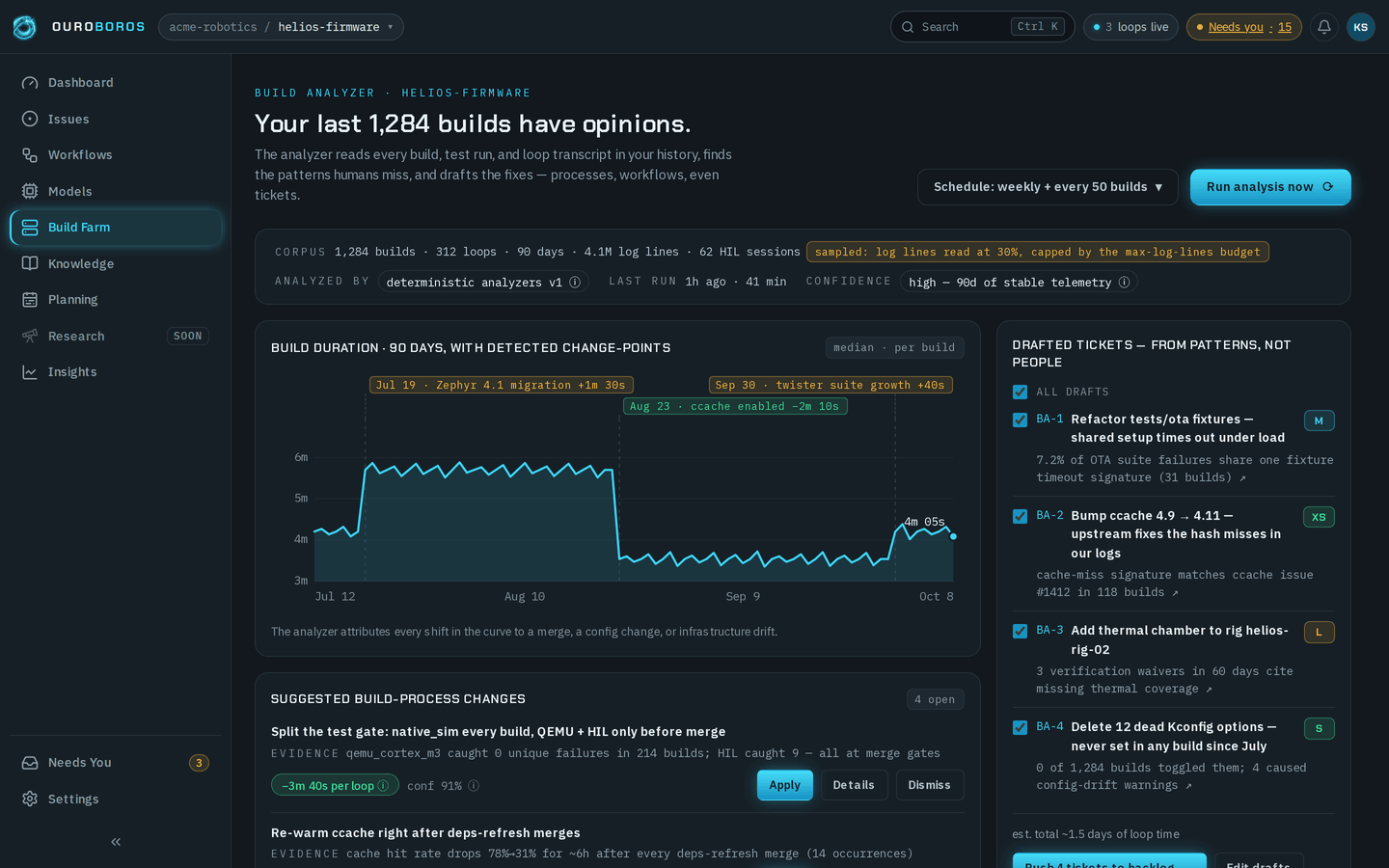

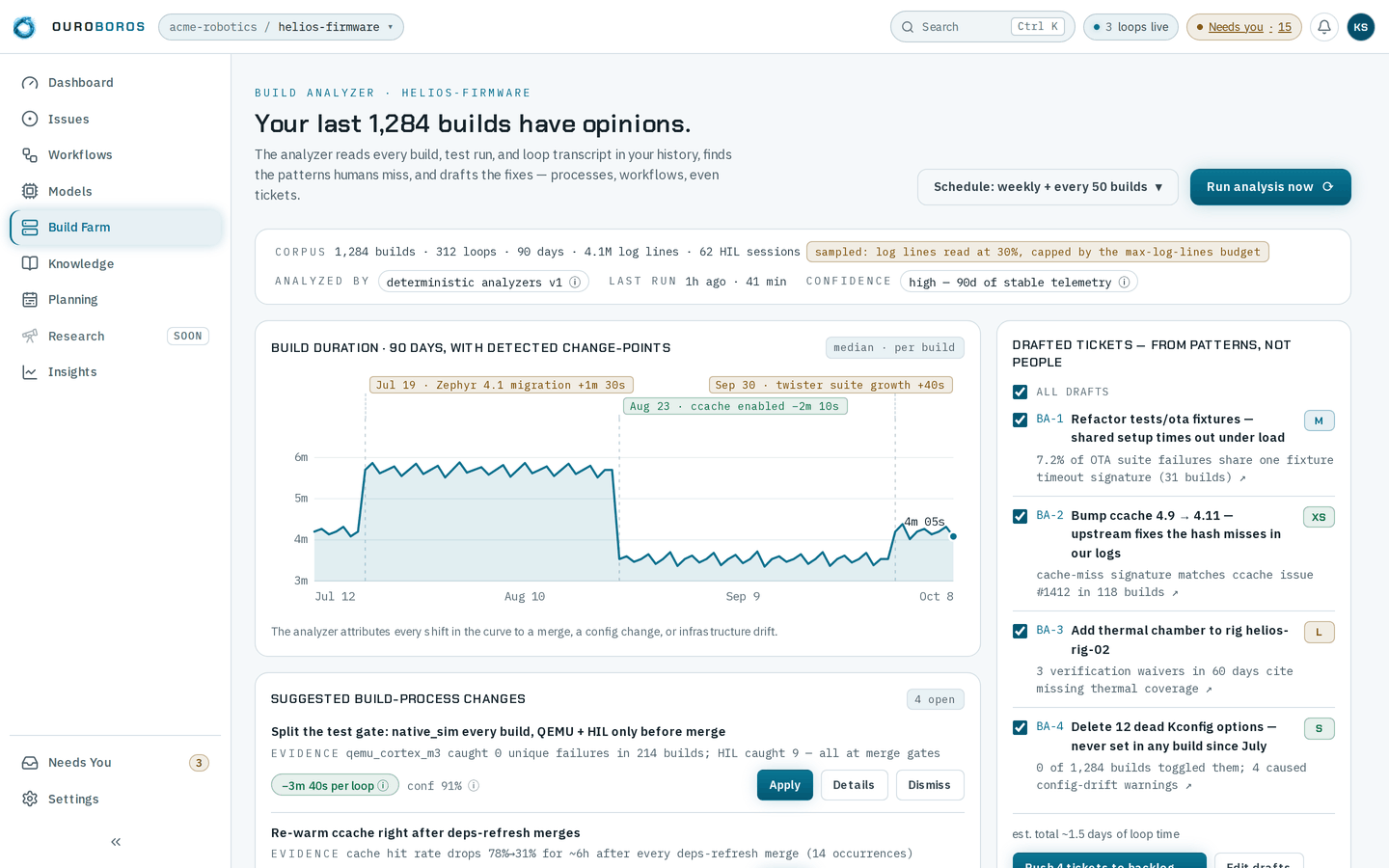

The Build Analyzer: build duration with the shifts it detected, its suggestions, and the tickets it drafted.
The Build Analyzer for helios-firmware, headed Your last 1,284 builds have opinions., with Schedule: weekly + every 50 builds and Run analysis now; the summary strip — corpus 1,284 builds, 312 loops, 90 days, 4.1M log lines and 62 HIL sessions with a sampled tag, analyzed by deterministic analyzers v1, last run 1h ago taking 41 min, confidence high; the build-duration chart with three change-point chips; the first suggested build-process change; and the drafted-tickets card with BA-1 to BA-4 ticked.The Build Analyzer for helios-firmware, headed Your last 1,284 builds have opinions., with Schedule: weekly + every 50 builds and Run analysis now; the summary strip — corpus 1,284 builds, 312 loops, 90 days, 4.1M log lines and 62 HIL sessions with a sampled tag, analyzed by deterministic analyzers v1, last run 1h ago taking 41 min, confidence high; the build-duration chart with three change-point chips; the first suggested build-process change; and the drafted-tickets card with BA-1 to BA-4 ticked.

You reach the page from ✦ Build Analyzer on Insights; the sidebar highlights Build Farm while you are on it.

Choosing a repository​

The analyzer works on one repository at a time: the one chosen in the header's workspace chip (Focus repository). With no repository chosen, it shows the first enabled one and says Showing the first enabled repository — choose another from the tenant chip. The eyebrow names the repository — Build Analyzer · helios-firmware.

The header​

The headline says how much history there is to learn from — such as Your last 1,284 builds have opinions. With fewer builds than days in the window it reads, for example, 12 builds in 90 days — early opinions, held loosely.

  • Schedule — shows when the analysis runs, such as Schedule: weekly + every 50 builds, Schedule: manual only or Schedule: paused. Choose it to open Analysis schedule: Scheduled runs on or off, a Weekly run on a Day at a Time (UTC), an Every-N-builds run with Builds between runs, and the limits a run may use — Max builds, Max log lines and Compute ceiling (s). Members can read it; only owners and admins can change it.
  • Run analysis now — starts an analysis straight away. Only owners and admins can run one. While it runs, Analysis progress shows each phase, and the results on the page stay those of the last finished analysis until it ends.

What the last analysis read​

The strip under the header describes the last finished analysis:

  • Corpus — what it read: builds, loops, days, log lines and rig sessions. A sampled tag means it read only part of something, such as log lines read at 30%, capped by the max-log-lines budget.
  • Analyzed by — the analyzers that ran. Its ⓘ lists each one and how it ended.
  • Last run — when it ran and how long it took.
  • Confidence — high, medium or low, from how many days had builds and how many builds a day there were. Its ⓘ (How this was judged) shows the figures and the bars each level needs.

Build duration​

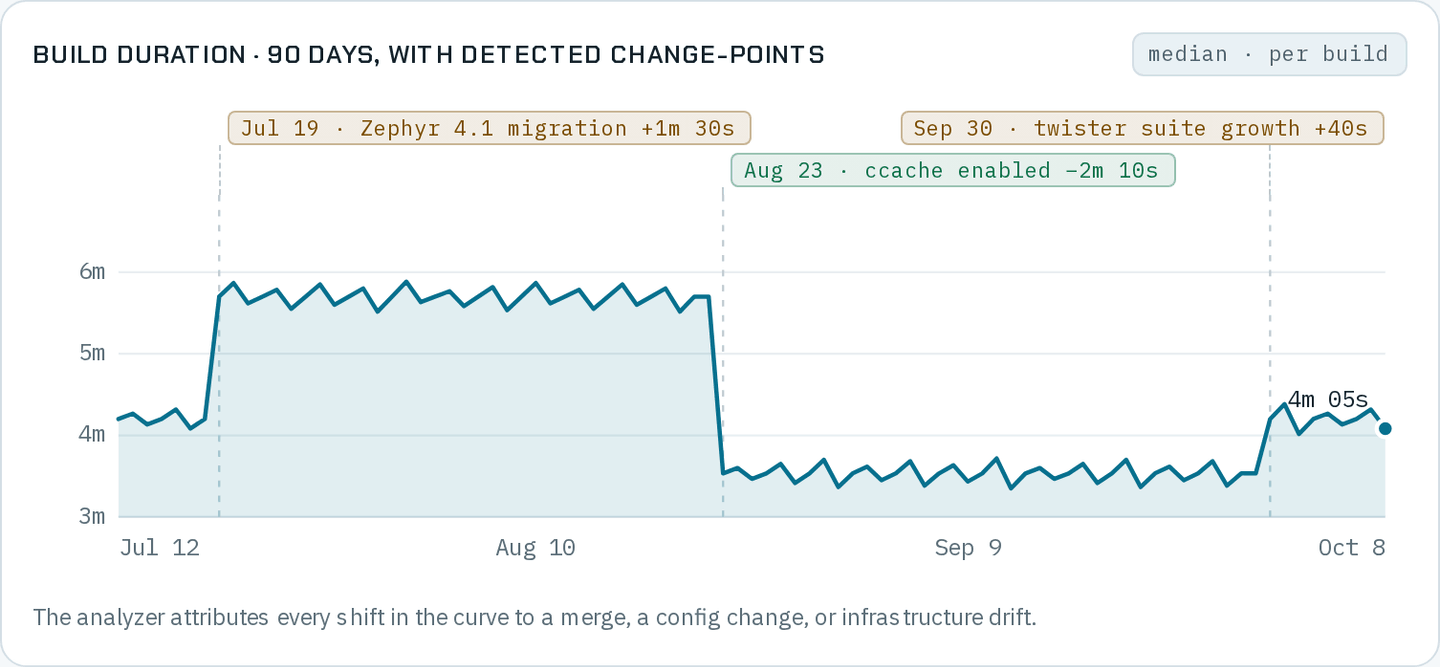

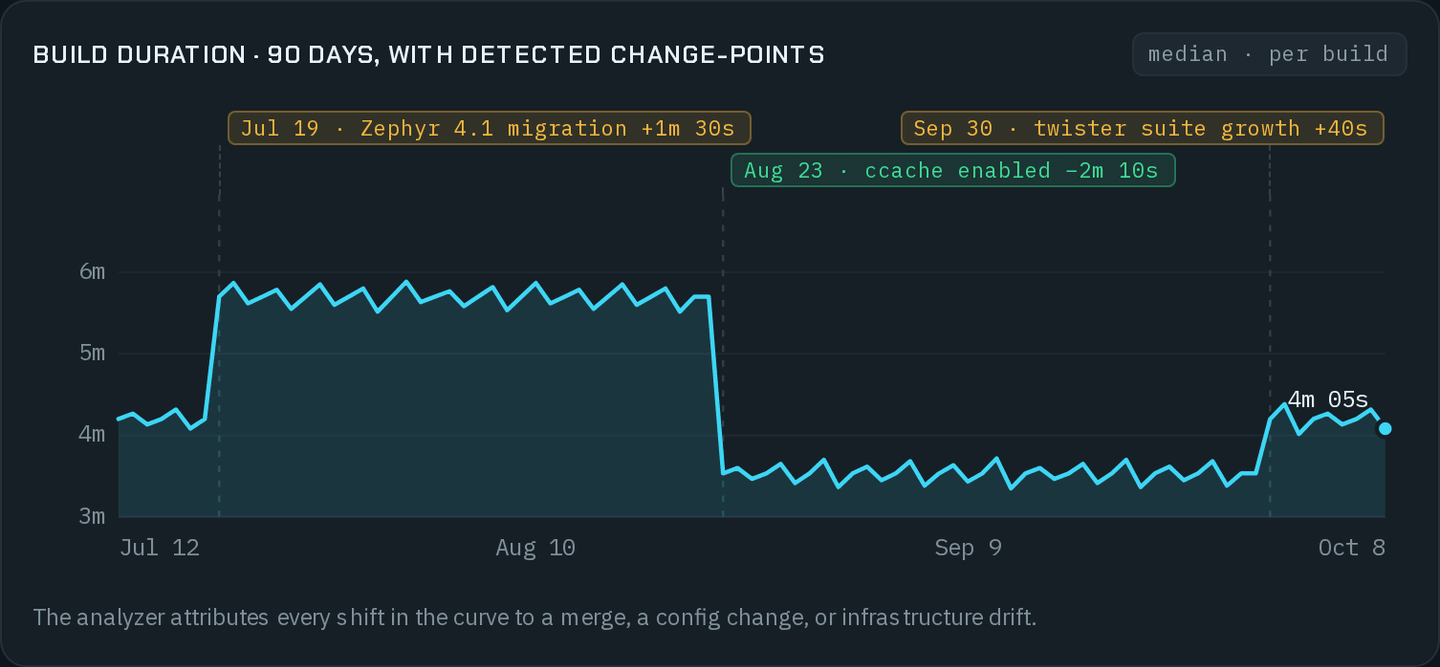

Build duration over the analysis window, with a chip for each detected shift and what it is attributed to.
Build duration · 90 days, with detected change-points, median per build from Jul 12 to Oct 8: the line jumps from about 4m to 5m 45s at Jul 19 · Zephyr 4.1 migration +1m 30s, drops to about 3m 30s at Aug 23 · ccache enabled −2m 10s (green), and rises to 4m 05s at Sep 30 · twister suite growth +40s; under it, The analyzer attributes every shift in the curve to a merge, a config change, or infrastructure drift.Build duration · 90 days, with detected change-points, median per build from Jul 12 to Oct 8: the line jumps from about 4m to 5m 45s at Jul 19 · Zephyr 4.1 migration +1m 30s, drops to about 3m 30s at Aug 23 · ccache enabled −2m 10s (green), and rises to 4m 05s at Sep 30 · twister suite growth +40s; under it, The analyzer attributes every shift in the curve to a merge, a config change, or infrastructure drift.

Build duration · 90 days, with detected change-points plots the median build time per day over the analysis window. Each dashed line is a change-point — a day the build time shifted and stayed shifted — and its chip says when, what it is attributed to, and by how much: Aug 23 · ccache enabled −2m 10s. A shift that made builds faster is green; slower is amber.

Choose a chip to open its details: the change, the evidence the analyzer used, and what it is Attributed to (top candidate), with the other candidates below it. Attribution is a ranking, not a verdict: the analyzer scores every recorded change near the shift by how close it was and how plausible that kind of change is. It does not prove a cause. A shift that nothing recorded explains is labelled no recorded change — the shift is real, but the analyzer does not know why.

Suggestions​

Suggestions come in two cards: Suggested build-process changes (test gates, caching, runner pools, build steps) and Suggested workflow changes (how your loops run), each with how many are open.

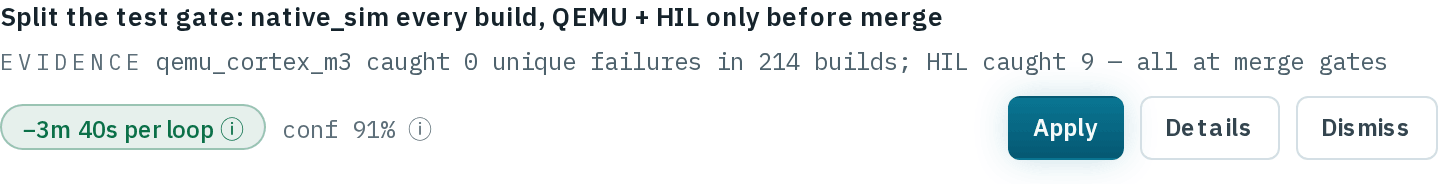

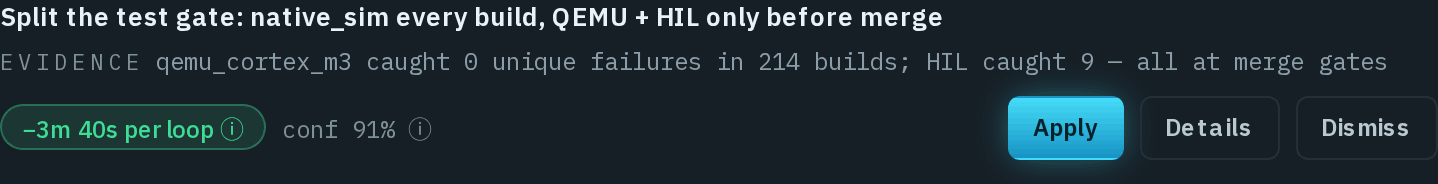

A suggestion: what to change, its predicted impact, how confident the analyzer is, and the evidence behind it.
The suggestion Split the test gate: native_sim every build, QEMU + HIL only before merge, with the evidence qemu_cortex_m3 caught 0 unique failures in 214 builds; HIL caught 9 — all at merge gates, a −3m 40s per loop impact pill and conf 91%, each with an info button, and the Apply, Details and Dismiss buttons.The suggestion Split the test gate: native_sim every build, QEMU + HIL only before merge, with the evidence qemu_cortex_m3 caught 0 unique failures in 214 builds; HIL caught 9 — all at merge gates, a −3m 40s per loop impact pill and conf 91%, each with an info button, and the Apply, Details and Dismiss buttons.

Each suggestion shows:

  • What to change — such as Split the test gate: native_sim every build, QEMU + HIL only before merge.
  • Evidence — the pattern it is based on, in one line.
  • The predicted impact — such as −3m 40s per loop. Its ⓘ (How this impact was computed) says whether the figure was measured or extrapolated, and how the analyzer's past accuracy scaled it.
  • The confidence — such as conf 91%. Its ⓘ (How this confidence was scored) shows what the score was built from.

Acting on a suggestion​

The first button depends on the kind of suggestion:

  • Apply — for a build-process change. It opens a Consequence preview that says exactly what will change and where it Lands in, then asks you to confirm. Applying records today's figures as a baseline and starts a measurement (see Predicted vs measured).
  • Draft as v15 → — for a workflow change; the number is the workflow's next version. It opens the same preview, then creates a draft in the workflow studio and opens it. Publishing remains human: nothing changes how loops run until a person reviews the draft and publishes it.
  • Draft spike ticket — for a suggestion marked needs a spike: the analyzer could not verify what the change would win, so it drafts an investigation ticket that asserts no impact. You choose the Tracker; the ticket goes into a planning batch and reaches your tracker only when that batch is pushed.

Then:

  • Details — the evidence behind the suggestion, with links to the builds, test results and pull requests it cites.
  • Dismiss — asks Dismiss this suggestion? with an optional Reason (optional). Dismissing is permanent: the suggestion won't be suggested again, even when a later analysis finds the same pattern.

Only owners and admins can apply a suggestion or draft from one; members can dismiss; viewers can read. A button you cannot use is greyed out and says why.

Simulate on last 50 loops, on workflow suggestions, is marked soon — it is not available yet.

The preview stays honest about what it can do: a change no part of Ouroboros can make yet says This cannot be applied yet and why, and nothing is applied. If the suggestion changed while the preview was open, the preview is read again and says so before you confirm.

A suggestion you have acted on stays in the list as a short row: an applied one links to Predicted vs measured; a drafted workflow change says publishing remains a person's step and links to Open in the studio; a drafted spike links to Open the draft in Planning; a dismissed one says won't be suggested again.

Predicted vs measured​

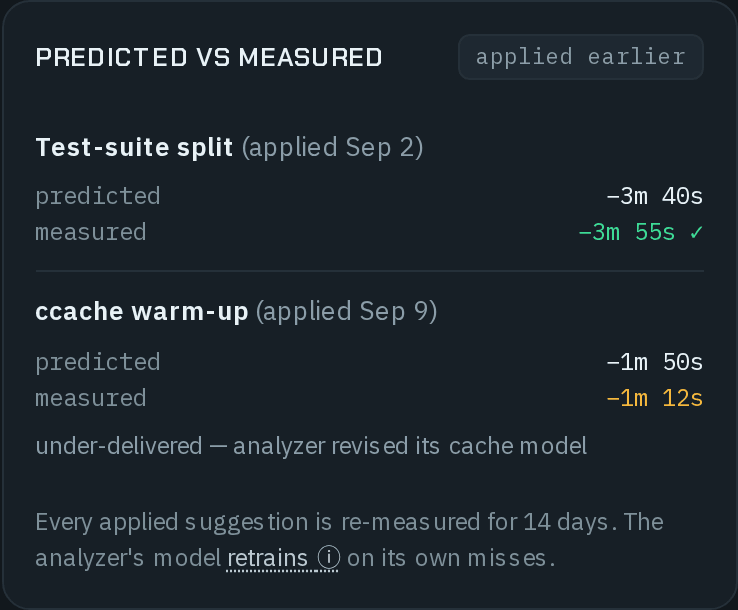

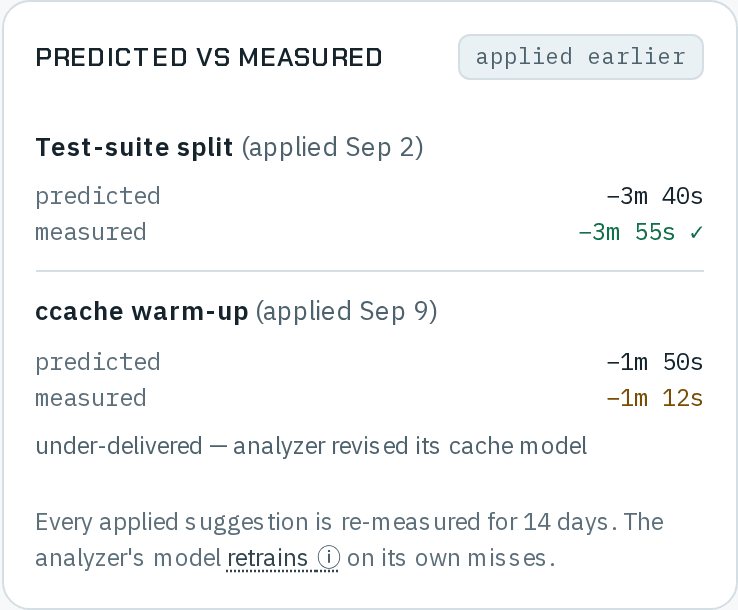

Predicted vs measured: each applied suggestion re-measured against what the analyzer predicted.
Predicted vs measured, applied earlier: Test-suite split (applied Sep 2) predicted −3m 40s and measured −3m 55s with a check mark; ccache warm-up (applied Sep 9) predicted −1m 50s and measured −1m 12s in amber, under-delivered — analyzer revised its cache model; and Every applied suggestion is re-measured for 14 days. The analyzer's model retrains on its own misses.Predicted vs measured, applied earlier: Test-suite split (applied Sep 2) predicted −3m 40s and measured −3m 55s with a check mark; ccache warm-up (applied Sep 9) predicted −1m 50s and measured −1m 12s in amber, under-delivered — analyzer revised its cache model; and Every applied suggestion is re-measured for 14 days. The analyzer's model retrains on its own misses.

Predicted vs measured holds every suggestion you applied: what the analyzer predicted, and what was measured after the change. Every applied suggestion is re-measured for 14 days. A result that delivered is marked ✓; one that missed is shown in amber with a note, such as under-delivered — analyzer revised its cache model.

  • While the measurement runs, the row says how far along it is — day 3 of 14 — and what is being measured until when.
  • When something else changed in the same window — another applied suggestion or a detected change-point — the row is marked confounded and lists What interfered:. A confounded result is not used to judge the analyzer.

The analyzer learns from its misses. Choose retrains to read How the analyzer recalibrates: each analyzer keeps one multiplier per kind of impact, and each clean measurement adjusts it, so the next prediction is scaled by how accurate the last ones were.

Drafted tickets​

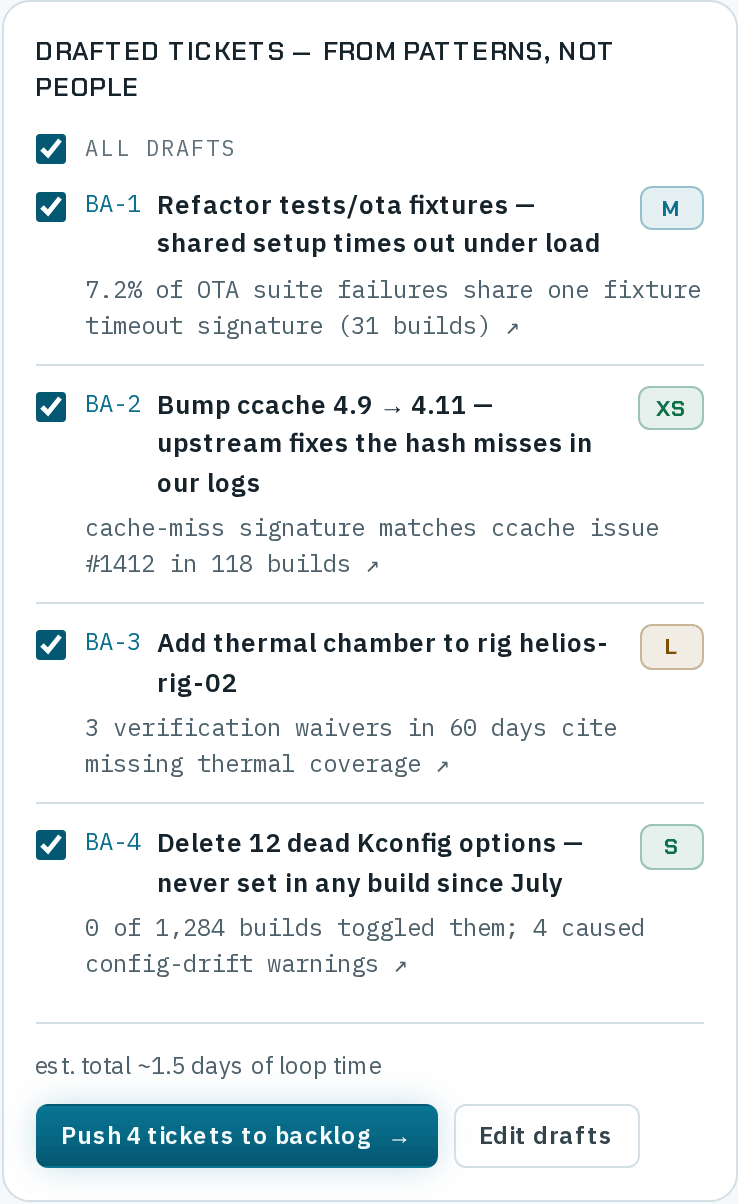

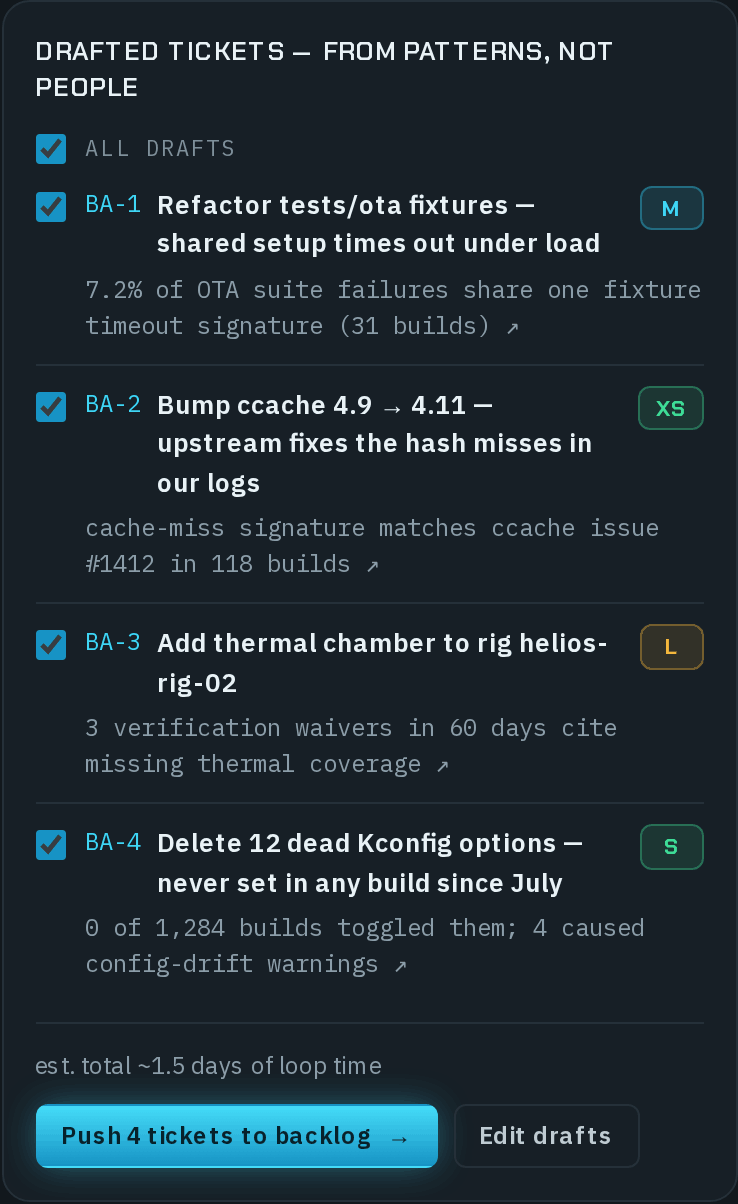

Drafted tickets: the analyzer's findings as a planning batch, ready to push to your tracker.
Drafted tickets — from patterns, not people, with All drafts ticked and four ticked drafts — BA-1 Refactor tests/ota fixtures (M), BA-2 Bump ccache 4.9 → 4.11 (XS), BA-3 Add thermal chamber to rig helios-rig-02 (L) and BA-4 Delete 12 dead Kconfig options (S) — each with its evidence line; est. total ~1.5 days of loop time; and the Push 4 tickets to backlog and Edit drafts buttons.Drafted tickets — from patterns, not people, with All drafts ticked and four ticked drafts — BA-1 Refactor tests/ota fixtures (M), BA-2 Bump ccache 4.9 → 4.11 (XS), BA-3 Add thermal chamber to rig helios-rig-02 (L) and BA-4 Delete 12 dead Kconfig options (S) — each with its evidence line; est. total ~1.5 days of loop time; and the Push 4 tickets to backlog and Edit drafts buttons.

Drafted tickets — from patterns, not people lists the tickets the analyzer drafted from its findings, such as BA-1 Refactor tests/ota fixtures — shared setup times out under load, each with its size and one line of evidence. Choose the evidence line to see every reference the ticket's body carries.

The drafts sit in a planning batch; nothing reaches your tracker until you push them:

  1. Tick the drafts you want — All drafts ticks or clears every one. Owners, admins and members can change the ticks; viewers cannot.
  2. Read the total under the list, such as est. total ~1.5 days of loop time.
  3. Choose Push 4 tickets to backlog → (the count follows your ticks) to file them in the batch's tracker. Only owners and admins can push.

Edit drafts opens the batch in Planning, where you can change a ticket's title or body before pushing. After a push, the card says how many landed — such as All 4 tickets are in GitHub. — with Open Issues; they appear in Issues once the backlog has synced. If some did not land, Retry pushes only the ones that are missing.

Findings that would make a ticket but are not drafted yet are listed under Not drafted yet, with Draft 2 tickets (the count varies) to turn them into a batch.

How it works​

How it works describes the three steps every analysis takes — ingest (what it read in this window), correlate (change-points against merges, configs and infrastructure events) and synthesize (process changes, workflow drafts and tickets, with evidence attached). A source the analysis could not read is listed as not read, with the reason.

Runs on your build farm's data. Nothing leaves the tenant. How that is enforced ↗ explains how.

Too little history​

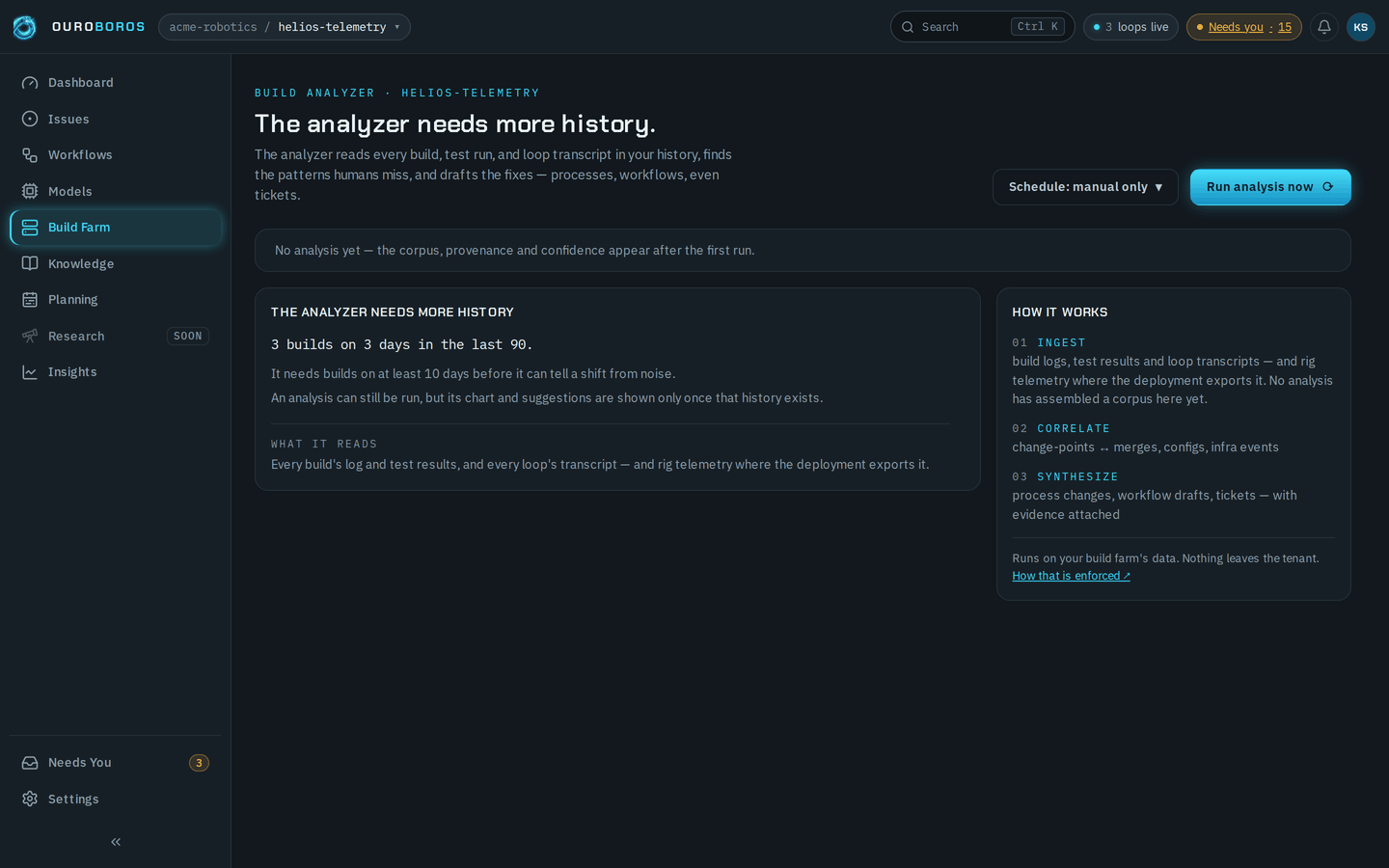

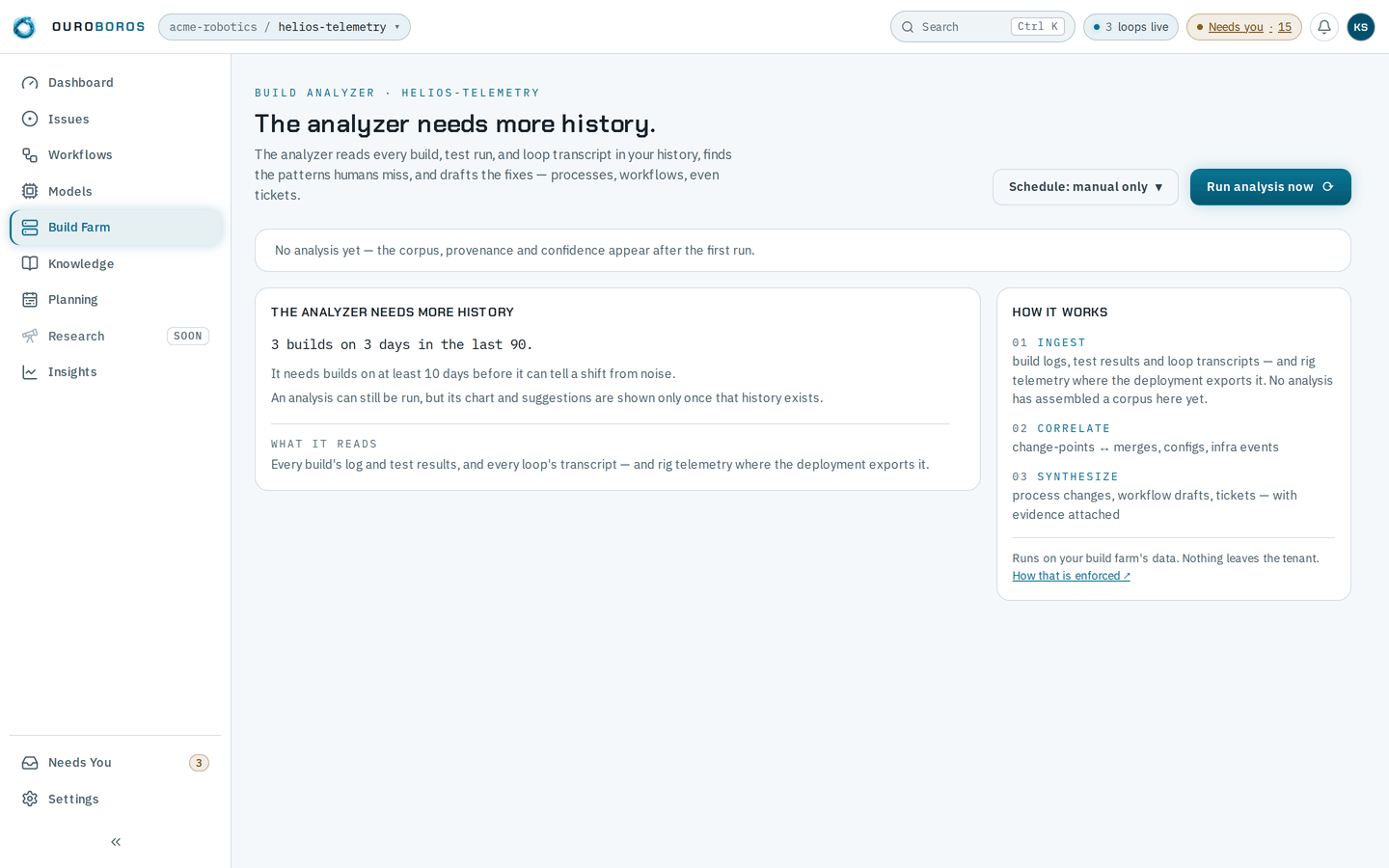

A repository with too little build history: the analyzer says what it needs before it shows a chart or suggestions.
The Build Analyzer for helios-telemetry, headed The analyzer needs more history., with Schedule: manual only and Run analysis now; the strip says No analysis yet — the corpus, provenance and confidence appear after the first run.; the card The analyzer needs more history reads 3 builds on 3 days in the last 90. It needs builds on at least 10 days before it can tell a shift from noise., and lists what it reads; beside it, How it works with its ingest, correlate and synthesize steps and Runs on your build farm's data. Nothing leaves the tenant.The Build Analyzer for helios-telemetry, headed The analyzer needs more history., with Schedule: manual only and Run analysis now; the strip says No analysis yet — the corpus, provenance and confidence appear after the first run.; the card The analyzer needs more history reads 3 builds on 3 days in the last 90. It needs builds on at least 10 days before it can tell a shift from noise., and lists what it reads; beside it, How it works with its ingest, correlate and synthesize steps and Runs on your build farm's data. Nothing leaves the tenant.

The analyzer needs builds on at least 10 days in the last 90 before it can tell a real shift from noise. Below that, the page says The analyzer needs more history., counts what there is — 3 builds on 3 days in the last 90. — and shows no chart or suggestions.

You can still run an analysis; its results appear once the history exists. A repository with enough history that has never been analysed says No analysis has run here yet and offers Run the first analysis.

What can go wrong​

  • "Only an owner or admin can run an analysis." Ask an owner or admin, or wait for the schedule.
  • "An analysis of … is already running" — a second run was not started. Choose Follow its progress.
  • "The analysis could not be started." The analysis service may be unavailable. The results on the page are unaffected; try again later.
  • "The analysis failed, and nothing from it is shown." The reason follows. The page keeps the last finished analysis's results.
  • "Stopped at its budget" — the run hit its compute or size limit. What the finished analyzers found is kept; raise the limits under Schedule if this keeps happening.
  • "This cannot be applied yet" in a preview — no part of Ouroboros can make that change yet. Nothing is applied; act on it by hand, or dismiss it.
  • "This suggestion was resolved while the preview was open; nothing was applied." Someone else applied, drafted or dismissed it first.
  • "The push could not be made." The tracker refused or could not be reached. Choose Retry; only the tickets that did not land are filed.
  • The chart is missing on a repository you expected to see. Check the repository in the header chip; the analyzer shows only the focus repository.
