Workflows as code

Every workflow can also be read and edited as code. The Code tab of the Workflow Studio, at /workflows/<slug>/code, prints the workflow as a typed TypeScript file — standard-fix.loop.ts — and saves your edits back to the same draft the canvas edits. Use it when text is quicker than dragging: renaming many stages, reviewing a whole workflow at once, or copying a stage from one workflow to another.

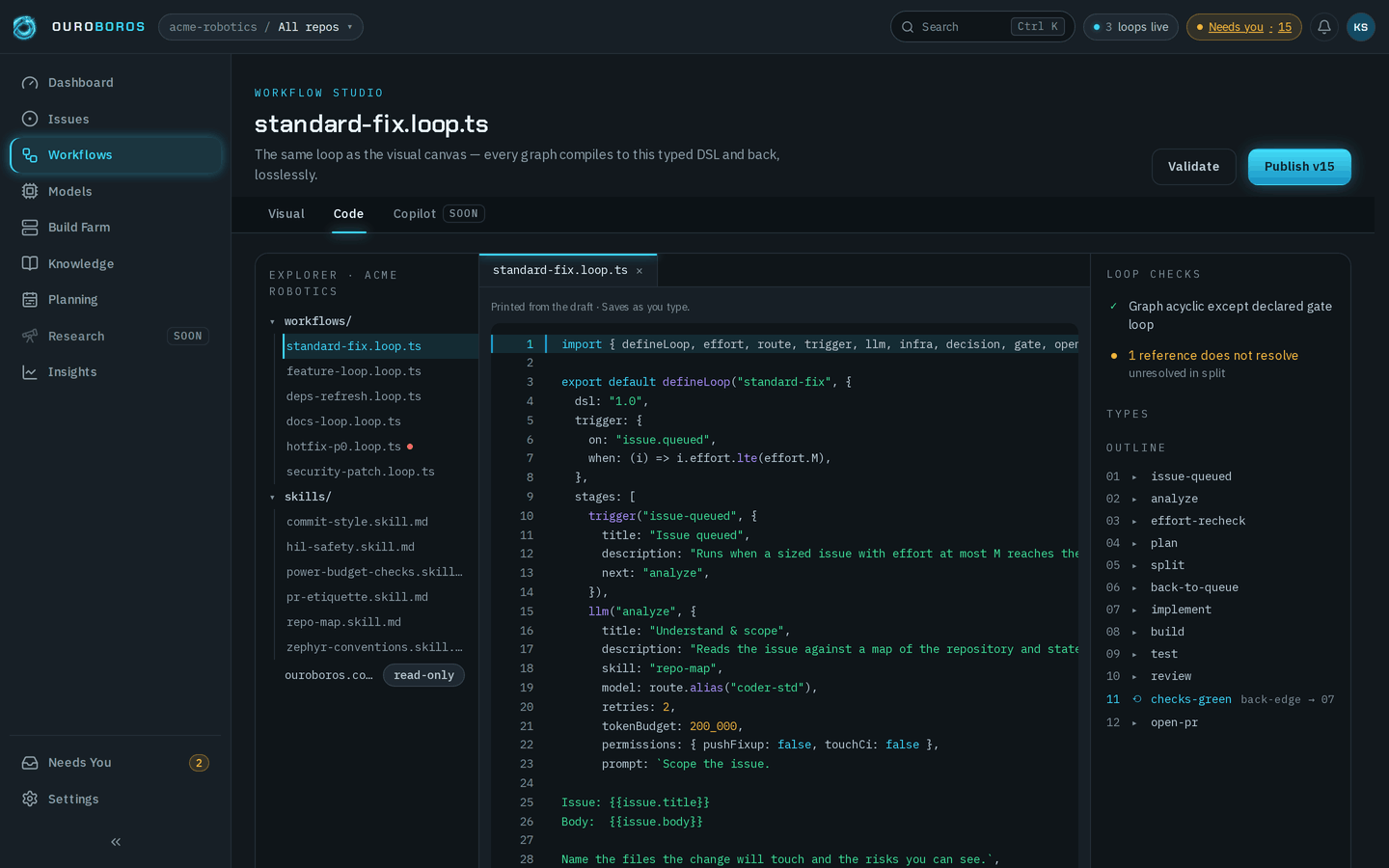

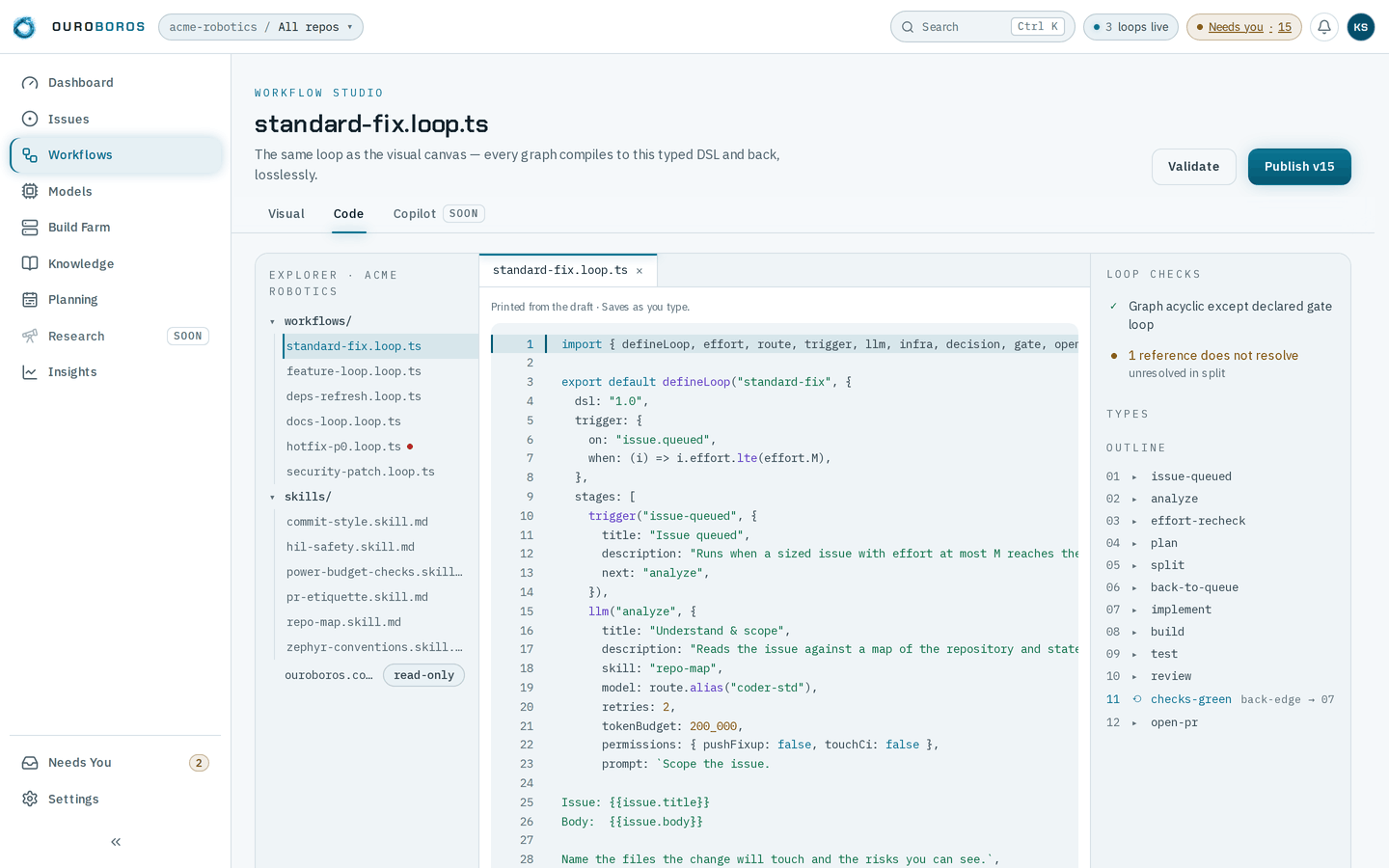

The code view: the same workflow as the canvas, as a typed file, with the explorer, the editor and the loop checks.

The code view

• Explorer — the workspace's files: one workflows/<slug>.loop.ts per workflow (a paused one carries a dot), the workspace's skills under skills/, and ouroboros.config.ts, which is printed from the model registry and marked read-only. Choose a workflow file to open it in a tab.
• The editor — the file, with the line above it saying where it came from and how it saves: Printed from the draft · Saves as you type., or Printed from v14 · no draft open when the workflow has no draft.
• Loop Checks, Types and Outline — on the right: checks over the whole file, the documentation of the symbol under your cursor, and the list of stages, with the loop's back-edge marked.
• The status bar — whether the file is in step with the canvas (synced with visual editor, saving…, parse error, conflict or not saved), which draft or version you are looking at, and your line and column.
• Validate and Publish vN — see Checking and publishing.

Only owners and admins can type in the editor. Everyone else reads the file, with the note that the Studio is read-only for them.

A short primer on the DSL

A workflow file is one call to defineLoop: the workflow's slug, the DSL version, its trigger and its stages. Nothing in the file is run — Ouroboros reads it as a description of the workflow, the same description the canvas draws.

import { defineLoop, trigger, needsReview } from "@ouroboros/sdk";

export default defineLoop("minimal", {
  dsl: "1.0",
  trigger: {
    on: "issue.queued",
  },
  stages: [
    trigger("start", {
      title: "Issue queued",
      next: "done",
    }),
    needsReview("done", {
      title: "Needs review",
    }),
  ],
});

• Stages are calls named after their kind — trigger, llm, infra, decision, gate, openPr, backToQueue and needsReview — each with an id and an options object: a title, an optional description, and the kind's own settings, such as an llm stage's skill, prompt, model, retries and tokenBudget.
• Edges are written on the stage they leave: next: "plan" for the next stage, branches: [{ to, when }] for a decision's outcomes, and onFail: "implement" for a loop back up the graph.
• Models are referenced by route: route.task("implement") uses the model your workspace routes that task to, and route.alias("coder-std") pins a registry alias.
• Conditions are small arrow functions over the issue, such as (i) => i.effort.lte(effort.M).
• Layout. The file ends with a generated block, // @ouroboros/layout v1, holding the canvas positions of each stage — one // node <id> <x> <y> line per stage. The canvas owns these lines; leave them alone unless you add a stage, which needs a node line of its own.

The DSL is a closed language: helper functions, other imports, extra statements and expressions outside it are refused with a message saying so. The full definition is the workflow DSL schema in the Ouroboros repository.

Help while you type

Types follows your cursor: put the cursor on a call such as route.alias or llm and the card shows its signature and what it does.

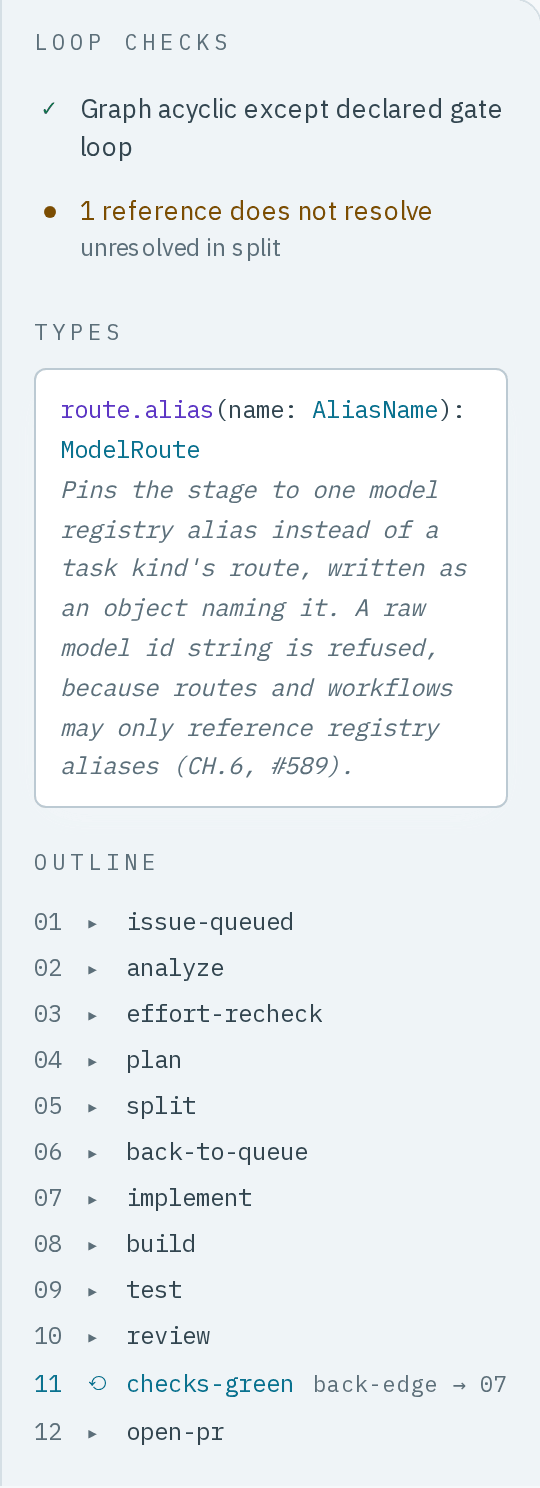

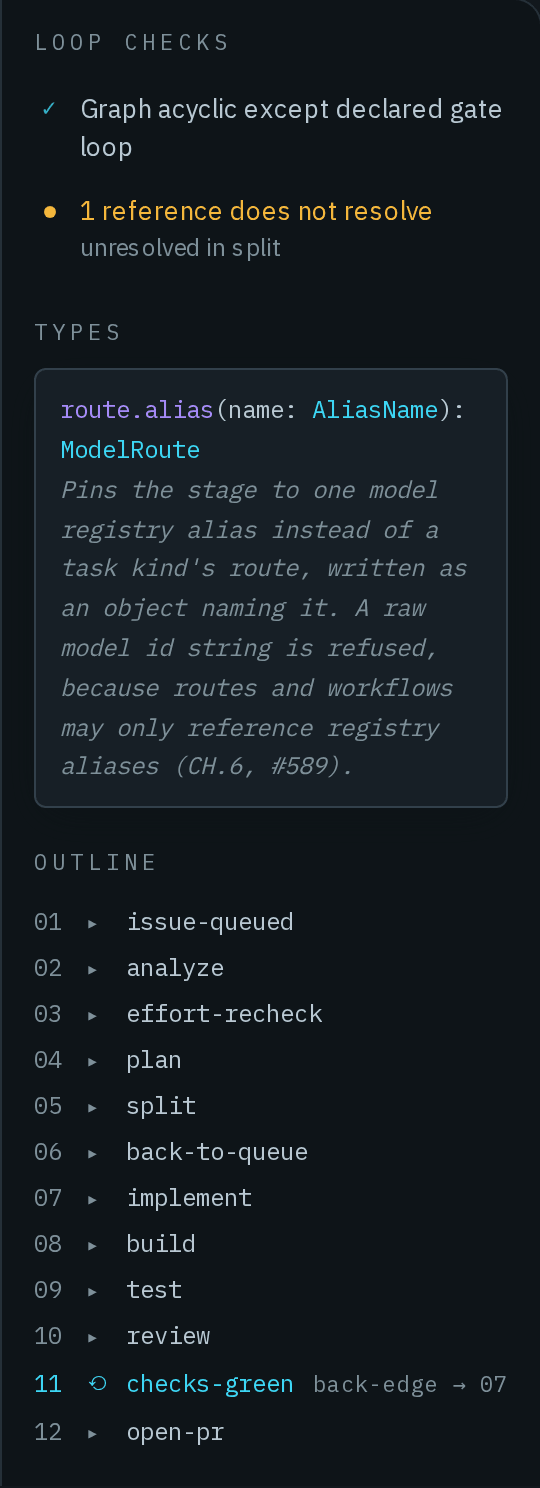

The Types card follows your cursor: here it documents route.alias, the call that pins a stage's model.

The editor does not offer completions or hover pop-ups yet — the Types card is where the documentation appears. The editor has no search, folding or minimap either.

Saving and the round trip with the canvas

The code view and the canvas edit one draft. Each change you type is saved about a second after you stop — Edited — saving shortly., Saving…, All changes saved. — or at once with ⌘S / Ctrl+S. Switch to Visual and the canvas shows your change; edit the canvas and the code view prints it on its next load. As on the canvas, the draft is not what runs until you publish it.

A file that does not parse is never saved. Ouroboros reads the file on the server; if it cannot, the draft is left as it was and the place is marked: a red underline and a gutter marker on the line, and a strip below the editor that counts the problems and links to each — Line 15, column 5: …. The line above the editor says Not saved — this file does not parse yet. The draft is unchanged. Your text is kept in the tab until you fix it.

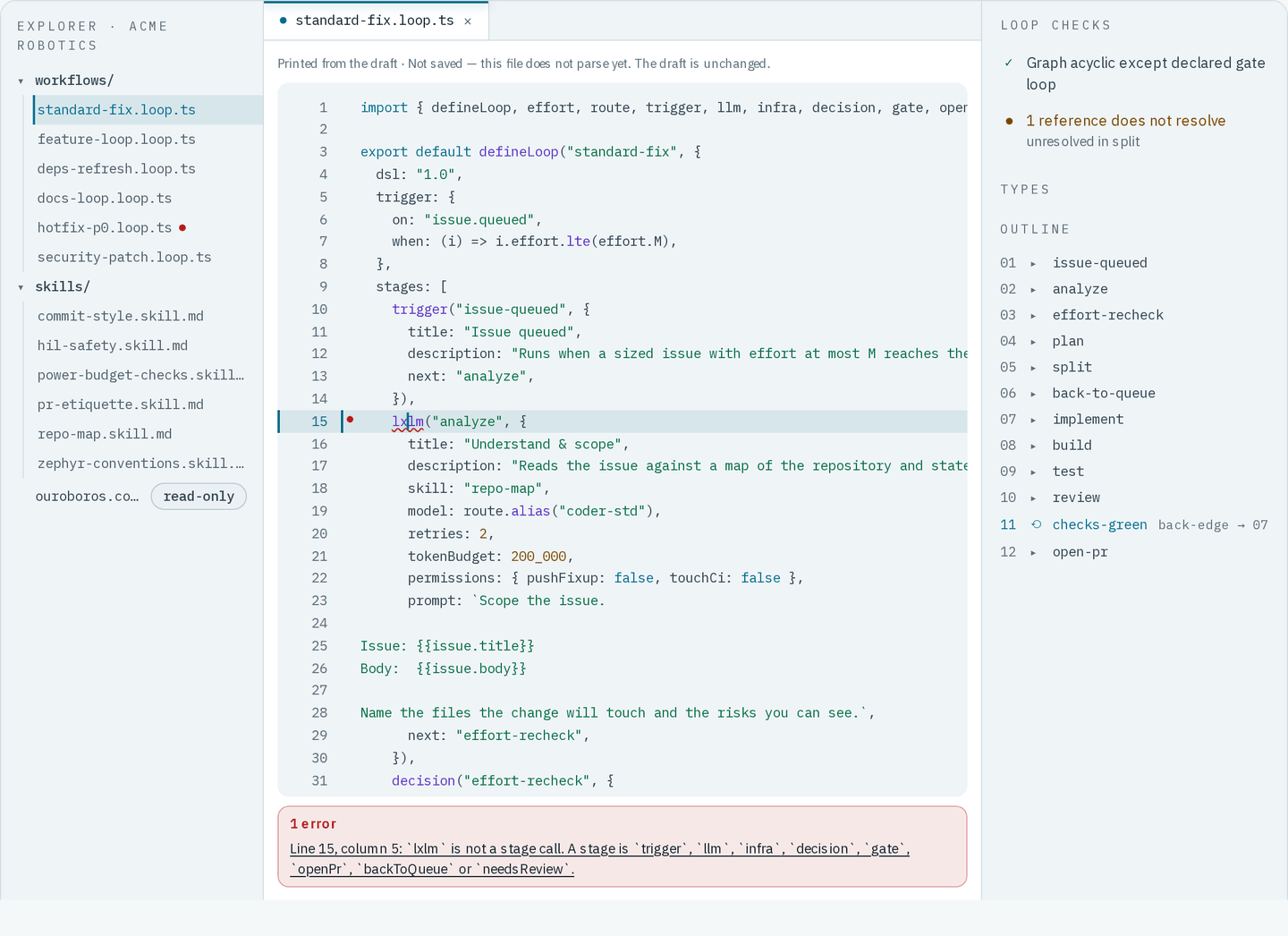

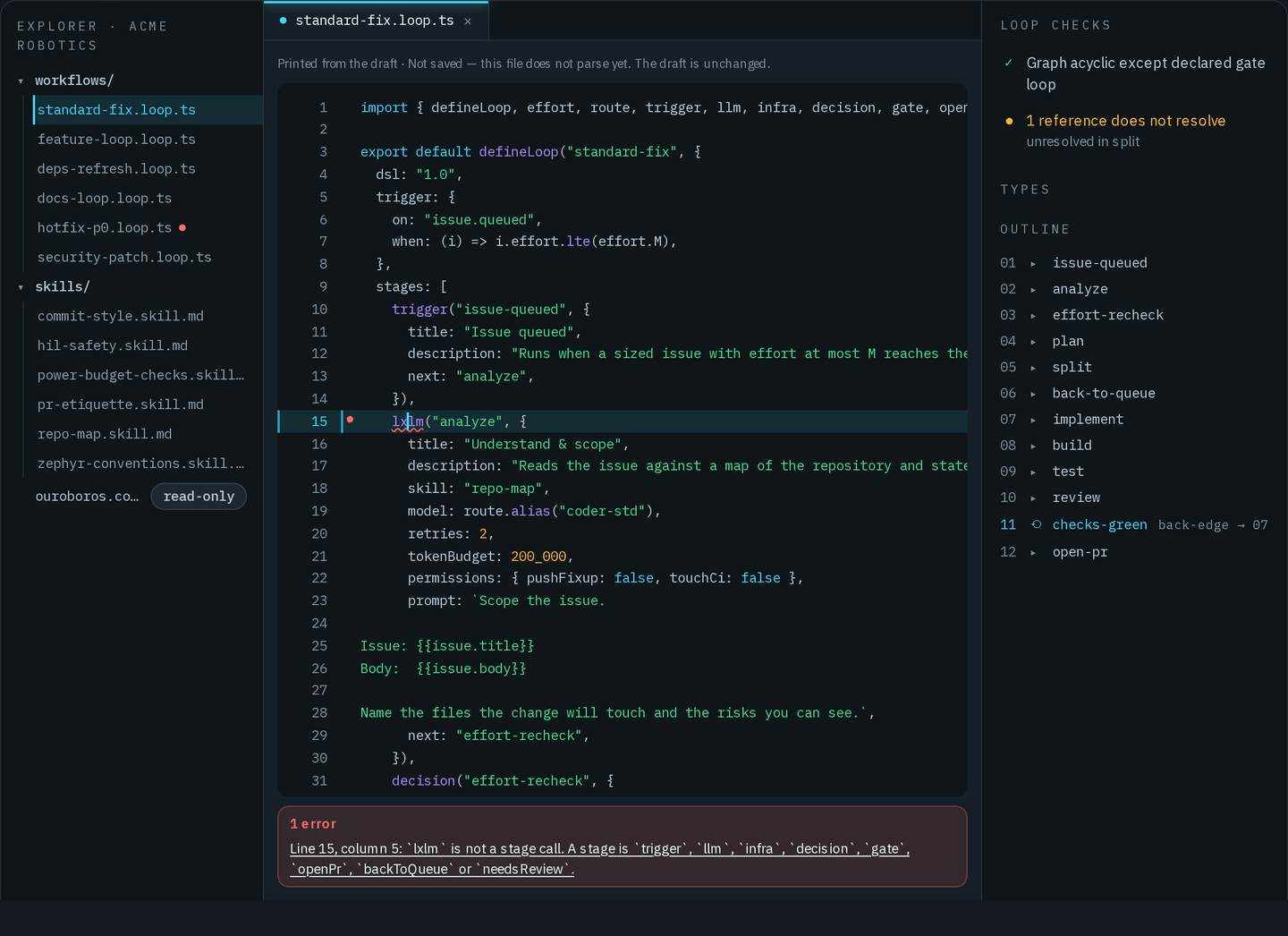

A line the DSL cannot read: the save is refused, the place is marked, and the draft is left as it was.

If you switch to Visual while the file does not parse, you are asked first — Discard code that has not parsed? — because the canvas can only show the last draft that saved. Choose Keep editing to stay, or Discard and open Visual to drop your text.

What does not round-trip

The draft stores the workflow, not your text. After a save, the next time the file is printed it is written out in its standard form:

• Comments you add are dropped. Only the generated comments are printed back.
• Formatting is normalised — indentation, key order, and spellings such as 400000, printed back as 400_000.
• Anything outside the DSL is refused, not kept: helper functions, other imports, and statements outside defineLoop.
• Layout lives in the layout block. A node line for a stage that no longer exists is dropped; a stage with no node line is an error.

A draft the canvas can hold but the code view cannot print — a blank canvas, for example — shows Not readable as code yet, with Finish it in Visual.

Checking and publishing

• Validate saves your latest edit, then checks the whole draft — the same checks a publish runs — and marks any findings in the file and in Loop Checks. It publishes nothing: Validated — every check is green. Nothing was published. Anyone in the workspace can validate.
• Publish vN opens the same publish dialog as the canvas; see Publishing a version. Choosing a finding in it moves your cursor to that stage.

Loop Checks also lists warnings that do not stop a publish, such as 1 reference does not resolve — a skill, task route or model alias the file names that your workspace does not have yet.

Dry runs are started from the canvas; the code view has no Dry run button.

What can go wrong

• "Not saved — this file does not parse yet." Fix the marked lines; nothing reaches the draft until the file parses.
• "Autosave paused — the draft changed in another editor." Someone changed the draft — on the canvas, in another tab, or another person. The draft changed in another editor asks you to choose: Reload theirs opens the draft as it is now and drops your text; Keep mine holds your text in the tab beside what changed, so you can compare and save it over theirs.
• "Your code is not saved yet — it is kept in this tab and tried again." The save could not reach the service. Ouroboros keeps retrying; your text stays in the tab.
• "The engine could not check this file, so it was not validated." Try Validate again in a moment.
• "… is not a stage call." A stage call is misspelled, or uses a kind the DSL does not have. The message lists the kinds it knows.
• Your comments disappeared. Comments you add are not kept — see What does not round-trip.
